Oxygen Sensor

Oxygen Sensor

Heated

Cable Length [mm]

80 mm

Number of circuits

3

Supplementary Article/Supplementary Info 2

without plug

Connector/Clamp

Connector may need adjustment

Thread Size

M18x1,5

Supplementary Article/Supplementary Info

with attachment/mounting material

Line insulation design

with silicone-coated woven-fibre insulation

Sensor, throttle position

Number of pins

3 -pin connector

Connector Shape

oval

Number of mounting bores

2

Rotation Direction

Anticlockwise rotation

Supplementary Article/Supplementary Info 2

without cable

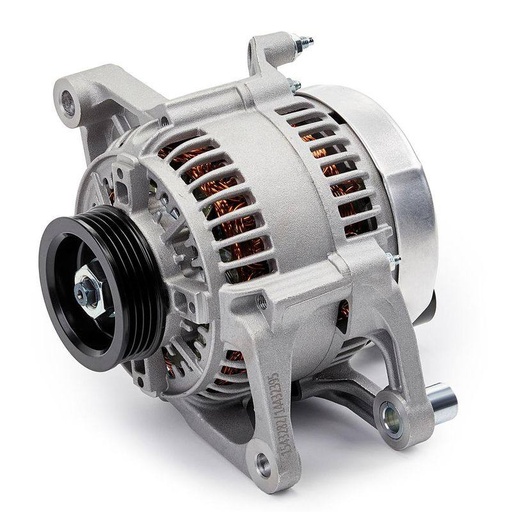

Alternator

Voltage [V]

12 V

Alternator Charging Current [A]

90 A

Fastening Type

3-point attachment

Belt Pulley Ø [mm]

62.1 mm

Clamp

B+ (M8), F1, F2

Pulleys

with belt pulley

Rotation Direction

Clockwise rotation

Alternator Type

excl. vacuum pump

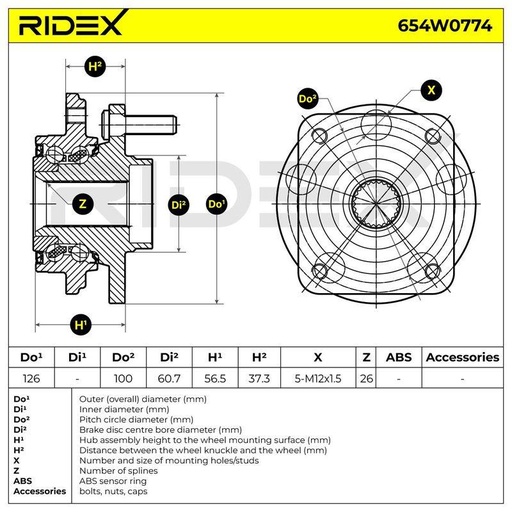

Wheel Bearing Kit

Fitting Position

Right

Inner Diameter [mm]

27 mm

Outer Diameter [mm]

126 mm

Width [mm]

75.5 mm

Inner Diameter 2 [mm]

29 mm

Outer Diameter 2 [mm]

86 mm

Width 2 [mm]

95 mm

Rim Size [inch]

14 Inch

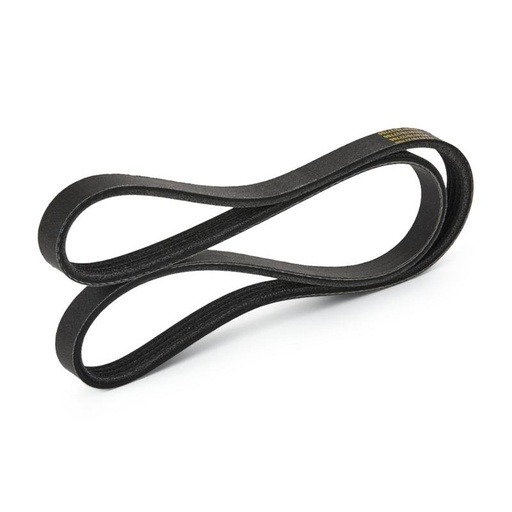

V-ribbed Belt

Number of ribs

4

Length [mm]

970 mm

Width [mm]

14.24 mm

Parameter

4PK0970

One-sided/Double-sided

One-sided

Thickness [mm]

4.45 mm

Belt Material

EPDM (ethylene propylene diene Monomer (M-class) rubber)

Tensile Cord Material

Polyester

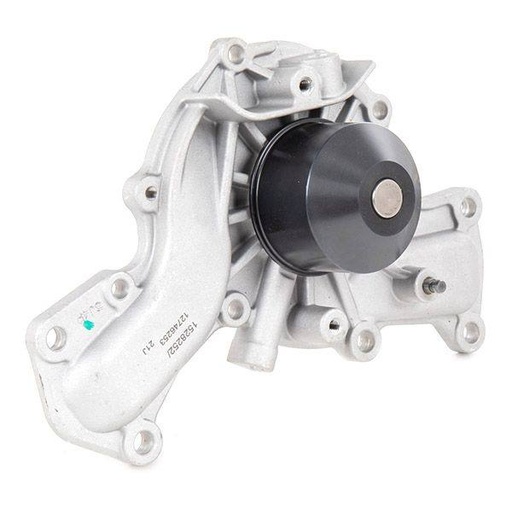

Water Pump, engine cooling

Water Pump Type

for timing belt drive

Supplementary Article/Supplementary Info

with gaskets/seals

Belt Pulley Ø [mm]

60 mm

Overall Height [mm]

86 mm

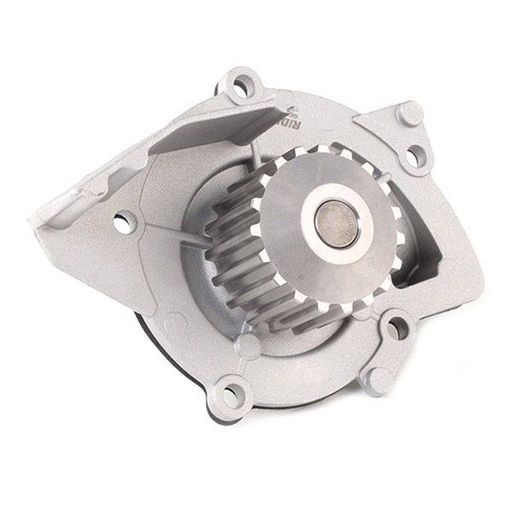

Water Pump, engine cooling

Number of Teeth

19

Water Pump Type

for timing belt drive

Supplementary Article/Supplementary Info

with gasket/seal

Pulleys

with belt pulley

Number of blades/vanes

8

Belt Pulley Ø [mm]

56 mm

Impeller Diameter [mm]

74 mm

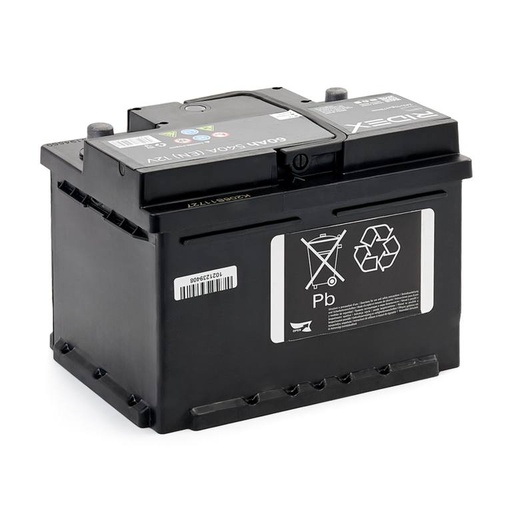

Starter Battery

Voltage [V]

12 V

Battery Capacity [Ah]

60 Ah

Cold-test Current, EN [A]

540 A

Length [mm]

242 mm

Width [mm]

175 mm

Height [mm]

175 mm

Post Positions

0

Terminal Type

1

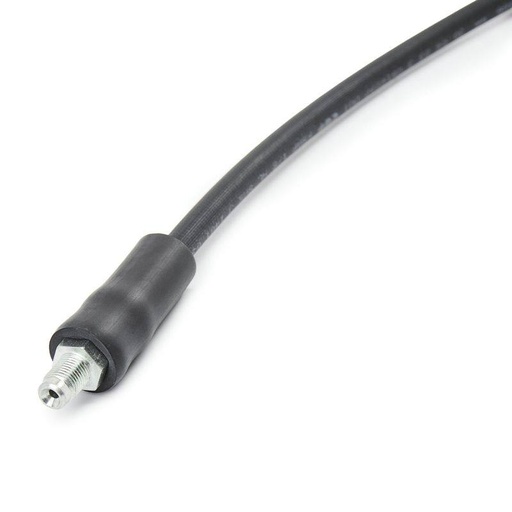

Brake Hose

Fitting Position

Front Axle

Thread Size 1

OUT. M10x1

Thread Size 2

INN. M10x1

Overall Length [mm]

380 mm

Weight [kg]

0.12 kg

Brake Hose

Fitting Position

Rear Axle

Length [mm]

335 mm

Thread Size 1

INN. M10x1

Thread Size 2

INN. M10x1

Weight [kg]

0.08 kg

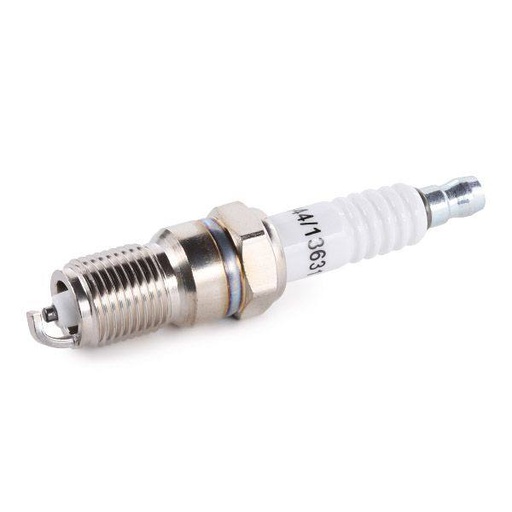

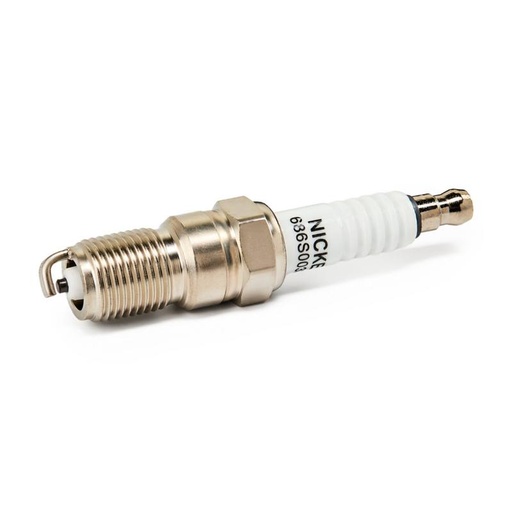

Spark Plug

Spark Plug

1 - Earthed Electrode

Electrode Gap [mm]

0.8 mm

Tightening Torque [Nm]

20 Nm

Tightening angle [degrees]

15 °

External Thread [mm]

14 mm

Thread Pitch [mm]

1.25 mm

Thread Length [mm]

17.5 mm

Spanner Size

16 mm

Spark Plug

Electrode Gap [mm]

0.8 mm

Thread Size

M 14 x 1,25

Thread Length [mm]

17.5 mm

Spanner Size

16 mm

Resistor [kohm]

6 kOhm

Spark Plug

Nickel mass electrode

Spark Position [mm]

4 mm

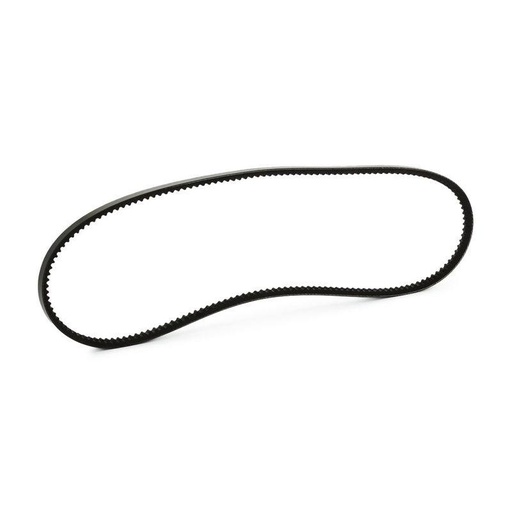

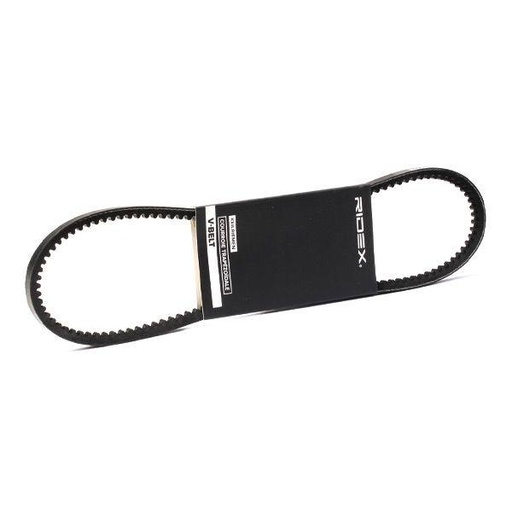

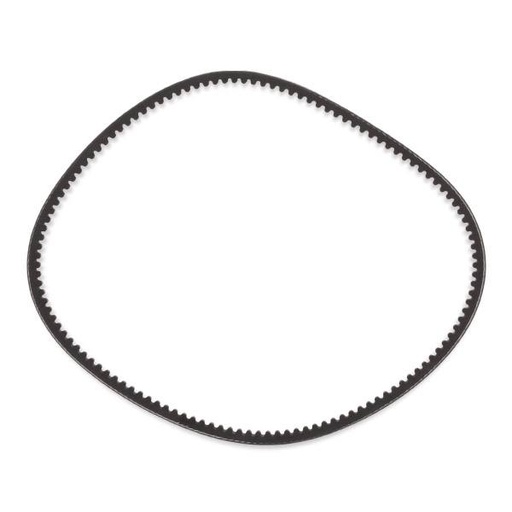

V-Belt

Length [mm]

1,050 mm

Width [mm]

10 mm

Weight [g]

83 g

V-Belt

Length [mm]

1,050 mm

Width [mm]

10 mm

Weight [g]

83 g

V-Belt

Length [mm]

813 mm

Width [mm]

10 mm

V-Belt

Length [mm]

813 mm

Width [mm]

10 mm

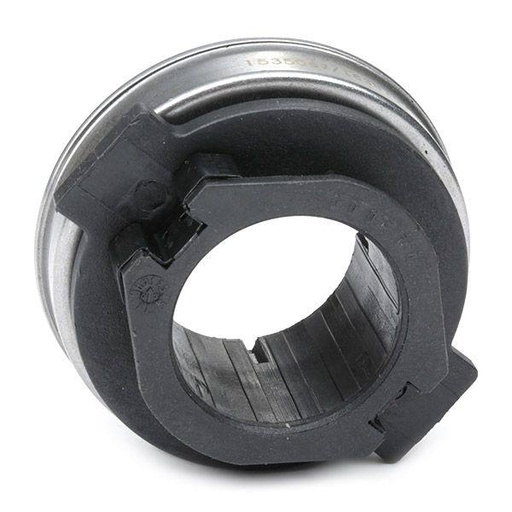

Clutch Release Bearing

Outer Diameter [mm]

64 mm

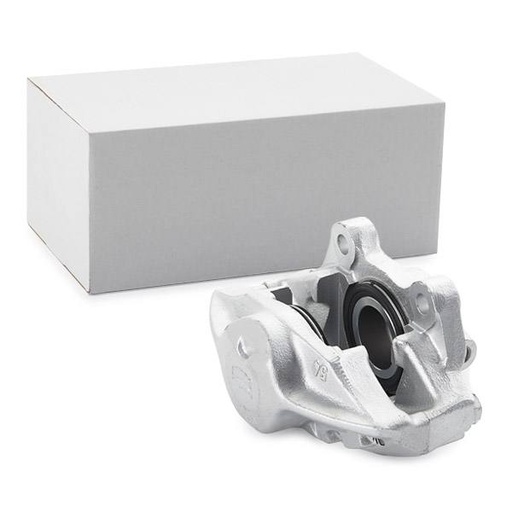

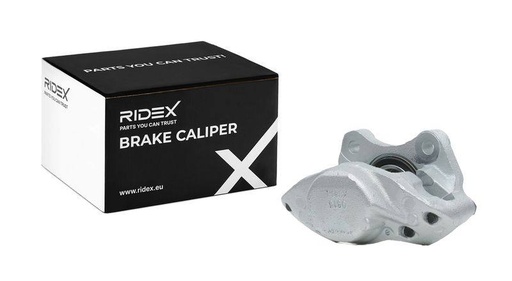

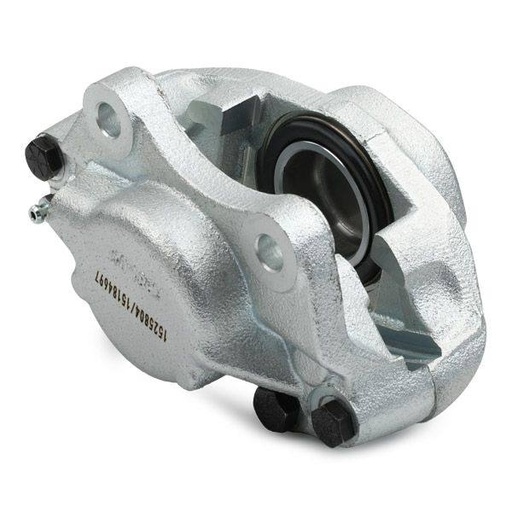

Brake Caliper

Fitting Position

Front Axle

Diameter 1/Diameter 2 [mm]

54,0 mm

for brake disc thickness [mm]

12.7 mm

Supplementary Article/Supplementary Info 2

with holding frame

Material

Grey Cast Iron

Brake Caliper Type

Brake Caliper (2 pistons)

Weight [kg]

4 kg

Brake Caliper

Fitting Position

Front Axle

Diameter 1/Diameter 2 [mm]

54,0 mm

for brake disc thickness [mm]

12.7 mm

Supplementary Article/Supplementary Info 2

with holding frame

Material

Grey Cast Iron

Brake Caliper Type

Brake Caliper (2 pistons)

Weight [kg]

4 kg

Brake Caliper

Fitting Position

Front Axle

Diameter 1/Diameter 2 [mm]

54,0 mm

for brake disc thickness [mm]

12.7 mm

Supplementary Article/Supplementary Info 2

with holding frame

Material

Grey Cast Iron

Brake Caliper Type

Brake Caliper (2 pistons)

Weight [kg]

4 kg
