Steering

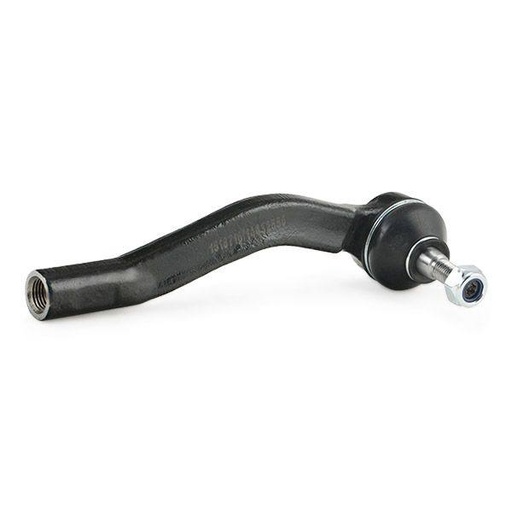

Tie Rod End

Fitting Position

Right

Length [mm]

206 mm

Thread Size

M10x1,25

Cone Size [mm]

12 mm

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Tie Rod End

Fitting Position

outer

Length 1 [mm]

203 mm

Diameter 1 [mm]

14.78 mm

Length 2 [mm]

24 mm

Thread Size 1

M14X1.5

Thread Size 2

M10X1.25

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

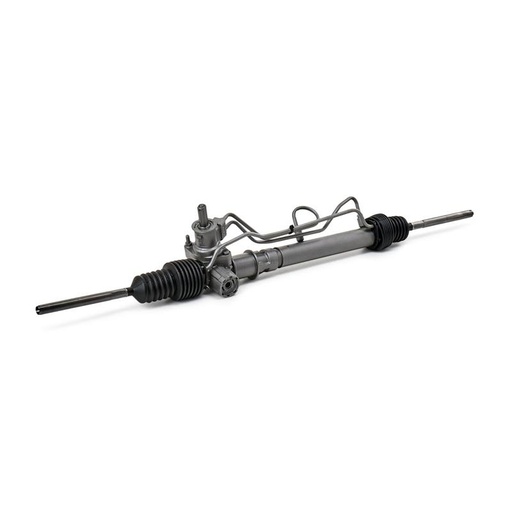

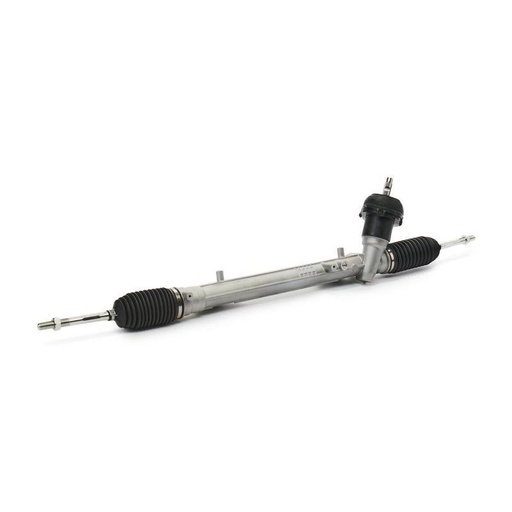

Steering Gear

Operating Mode

electronically controlled

Left-/right-hand drive vehicles

for left-hand drive vehicles

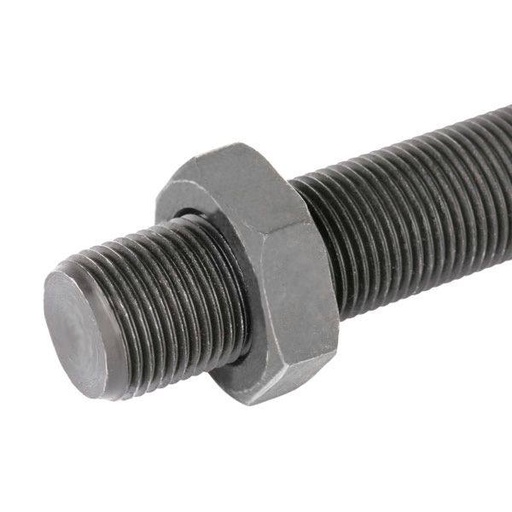

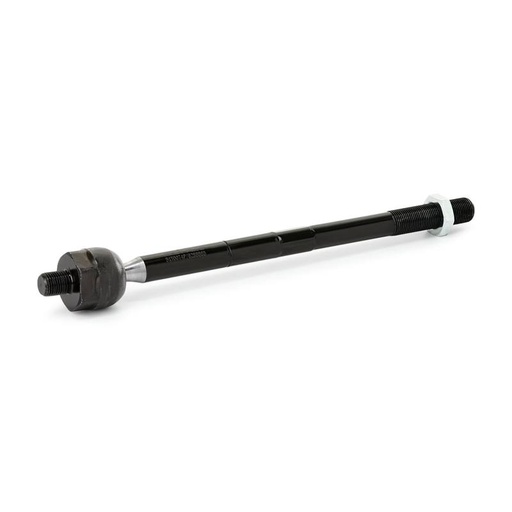

Inner Tie Rod

Fitting Position

Front

Thread Size 1

MM14X1.5 RHT

Thread Size 2

MM16X1.5 RHT

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Length [mm]

232 mm

Weight [kg]

0.5 kg

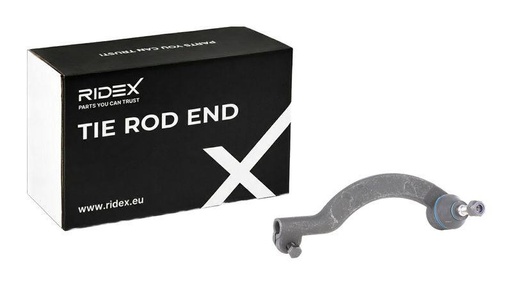

Tie Rod End

Fitting Position

Front Axle Right

Thread Size

IN M14X1.5 RHT

Cone Size [mm]

11.8 mm

Length [mm]

220 mm

Thread Size 2

M10x1.25

Cone Pitch

1/5

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Thread Type

with external thread

Tie Rod End

Fitting Position

Front Axle Left

Thread Size

IN M14X1.5 RHT

Cone Size [mm]

11.8 mm

Length [mm]

220 mm

Cone Pitch

1/5

Thread Size 2

M10X1.25

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Thread Type

with external thread

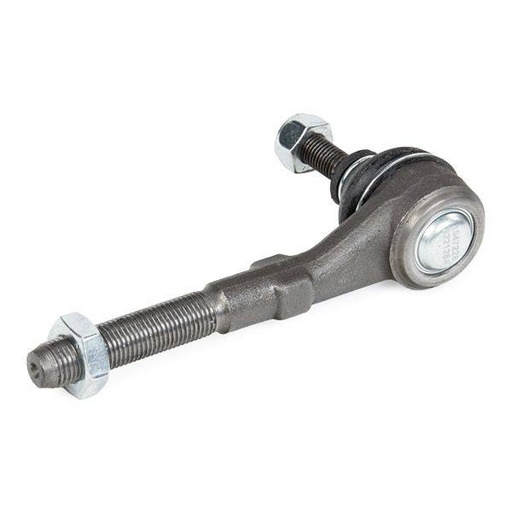

Tie Rod End

Fitting Position

Front Axle Left

Thread Size

FM14X1.5 RHT

Cone Size [mm]

11.9 mm

Length [mm]

188 mm

Thread Size 2

M10x1.25

Cone Pitch

1/5

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

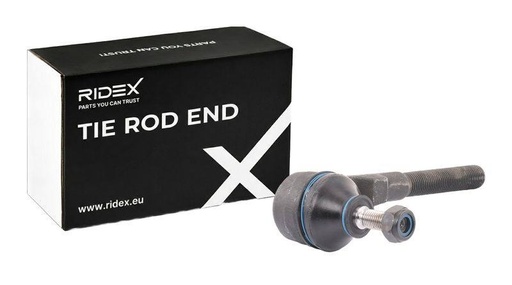

Tie Rod End

Fitting Position

Front Axle Right

Thread Size

FM14X1.5 RHT

Cone Size [mm]

12 mm

Length [mm]

188 mm

Thread Size 2

M10X1.25

Cone Pitch

1/5

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

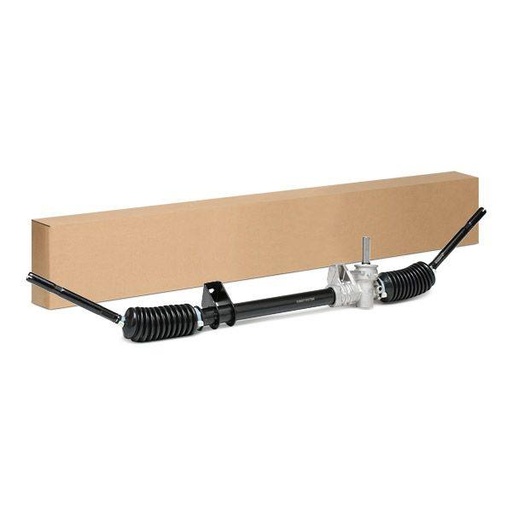

Steering Gear

Operating Mode

Manual

Left-/right-hand drive vehicles

for left-hand drive vehicles

Distance of mounting bores [mm]

275 mm

Axle Joint Thread Type

Internal Thread

Axle Joint Thread Size

M14 x 1,5

Overall Length [mm]

1,058 mm

Diameter [mm]

10 mm

Input shaft connector type

Rectangle

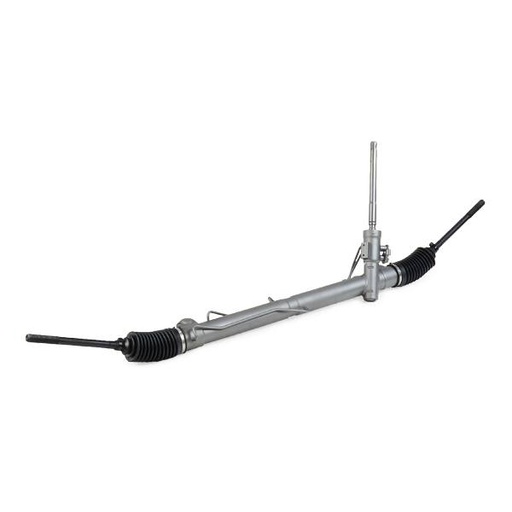

Steering Gear

Operating Mode

hydraulic

Axle Joint Thread Type

with external thread

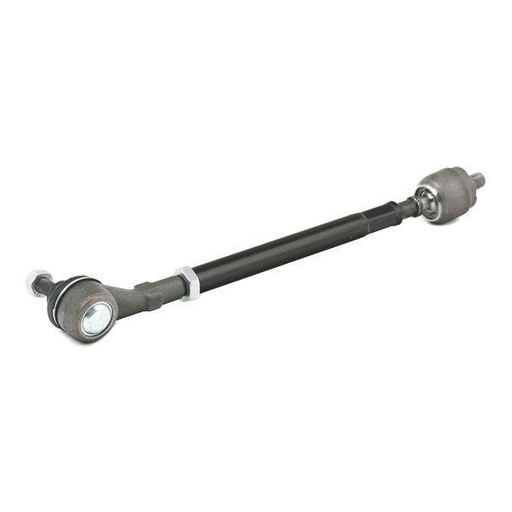

Tie Rod

Fitting Position

Front Axle Left

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Length [mm]

325 mm

Thread Size 1

M12x1

Thread Size 2

M10x1,25

Overall Length [mm]

362 mm

Cone Size [mm]

11.9 mm

Cone Pitch

1:5

Tie Rod End

Fitting Position

Right

Length 1 [mm]

130 mm

Diameter 1 [mm]

14.6 mm

Thread Size 1

M14X1.5

Thread Size 2

M10X1.25

Cone Size [mm]

12 mm

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Tie Rod End

Fitting Position

outer

Length 1 [mm]

130 mm

Diameter 1 [mm]

14.6 mm

Length 2 [mm]

22 mm

Thread Size 1

M14X1.5

Thread Size 2

M10X1.25

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Tie Rod End

Fitting Position

Front Axle

Overall Length [mm]

138.5 mm

Internal Thread [mm]

12 x 1,25 mm

Thread Length [mm]

47 mm

Overall Height [mm]

78 mm

Fitted Diameter [mm]

13 mm

External Thread 1 [mm]

12 x 1,25 mm

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Hydraulic Pump, steering

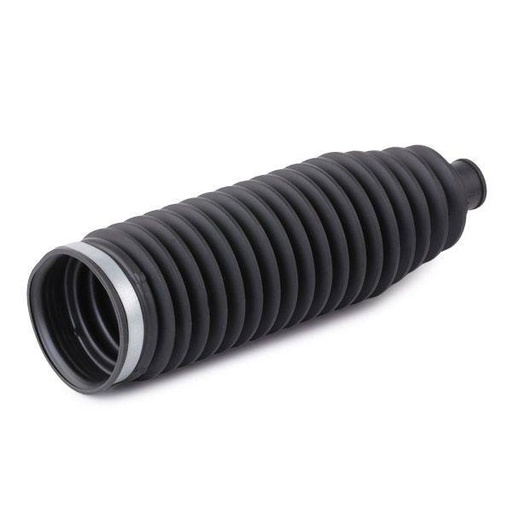

Bellow, steering

Fitting Position

Front Axle

Height [mm]

195 mm

Weight [g]

48 g

Diameter 1 [mm]

16.5 mm

Diameter 2 [mm]

52 mm

Steering Gear

Operating Mode

hydraulic

Left-/right-hand drive vehicles

for left-hand drive vehicles

Colour

grey

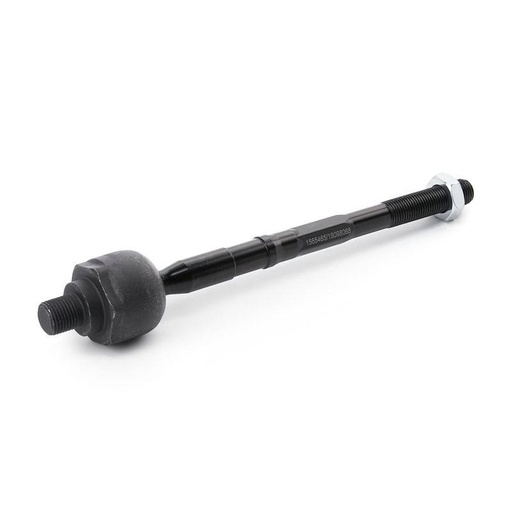

Inner Tie Rod

Fitting Position

Front Axle both sides

Length [mm]

335 mm

Diameter 1 [mm]

24.2 mm

Thread Size 1

M16X1.5

Thread Size 2

M18X1.5

Left-/right-hand drive vehicles

for right-hand drive vehicles

Inner Tie Rod

Fitting Position

Front Axle

Thread Size 1

M16X1.5

Thread Size 2

M18X1.5

Length [mm]

335 mm

Diameter 1 [mm]

24.2 mm

Container Type

Box

Tie Rod End

Fitting Position

Front Axle Left

Diameter 1 [mm]

20 mm

Container Type

Box

Length 1 [mm]

112 mm

Thread Size 1

M18X1.5

Thread Size 2

M14X2

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles
