Heating/Ventilation

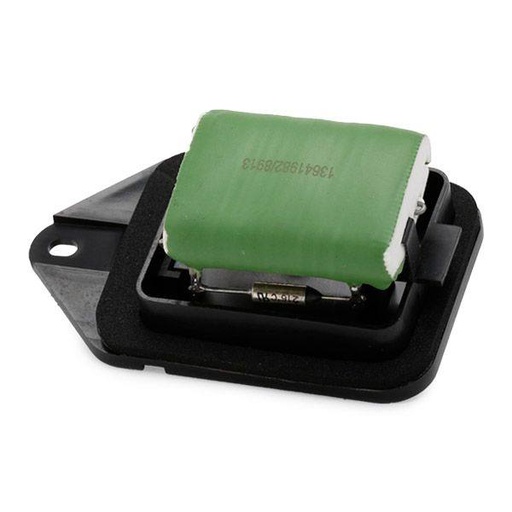

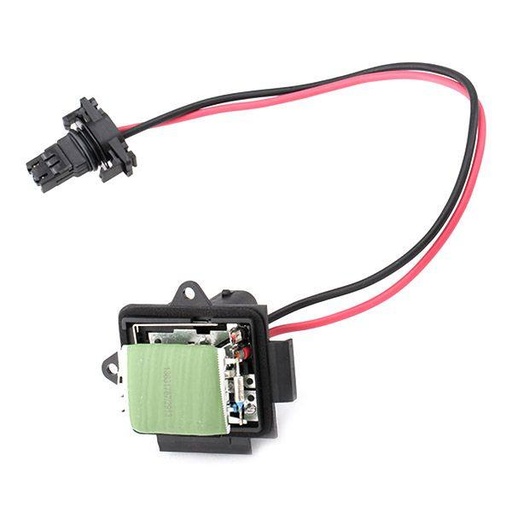

Control Unit, heating/ventilation

Number of connectors

4

Operating Mode

Electric

Voltage [V]

12 V

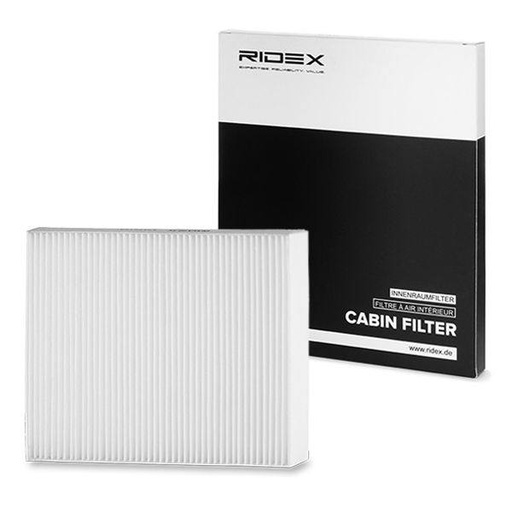

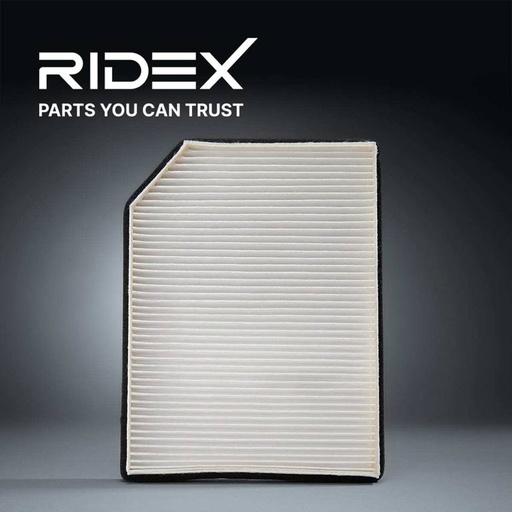

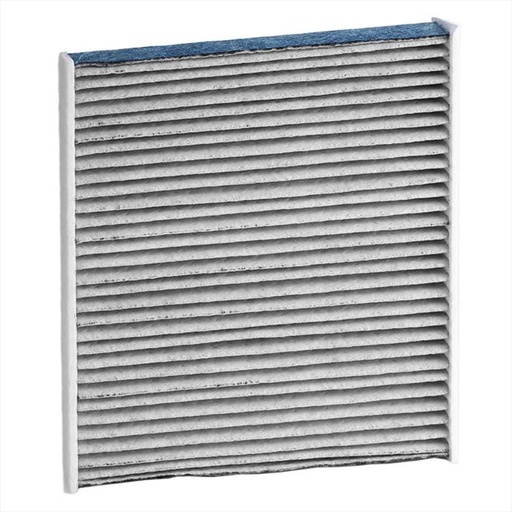

Filter, cabin air

Filter type

Particulate Filter

Length [mm]

230 mm

Width [mm]

195 mm

Height [mm]

30 mm

Quantity

1

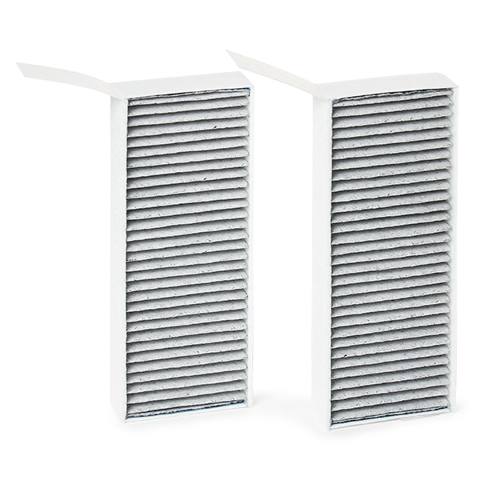

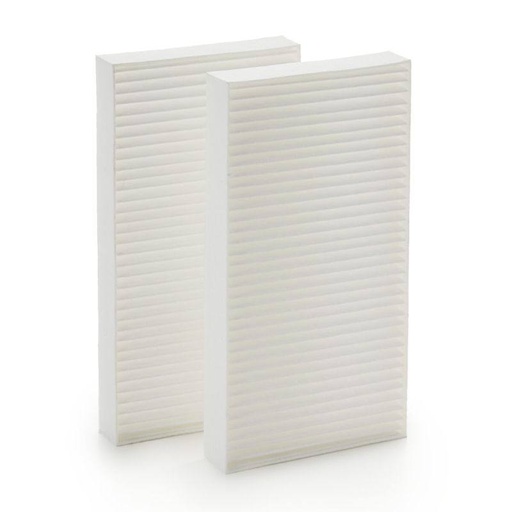

Filter, cabin air

Filter type

Particulate Filter

Length [mm]

181 mm

Width [mm]

91 mm

Height [mm]

20 mm

Quantity

2

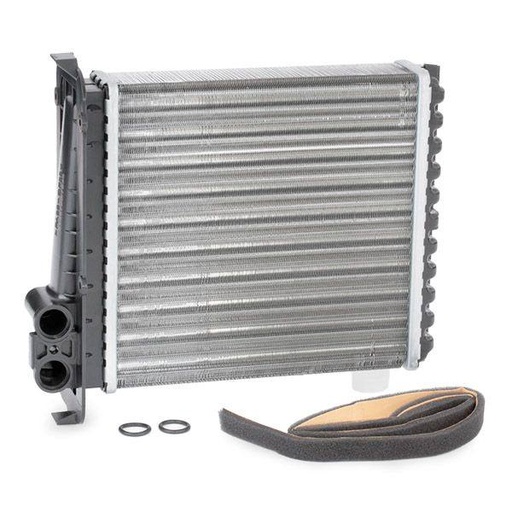

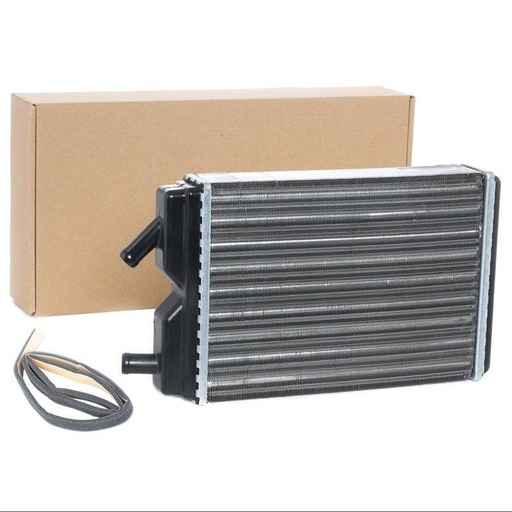

Heat Exchanger, interior heating

Core Length [mm]

248 mm

Core Width [mm]

175 mm

Core Depth [mm]

32 mm

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Water Tank Material (radiator)

Plastic

Outlet Diameter [mm]

16 mm

Inlet Diameter [mm]

16 mm

Core Dimensions

248 x 175 x 32 mm

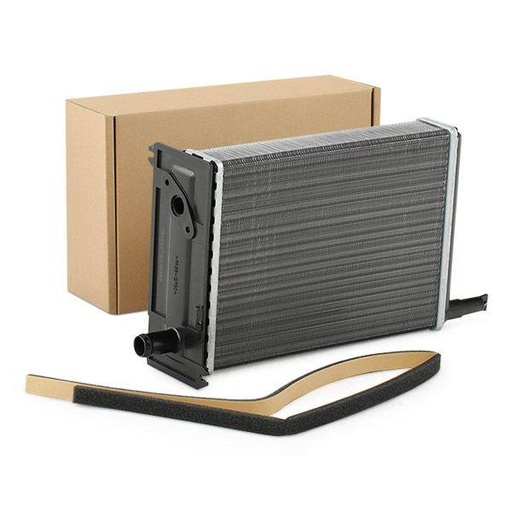

Heat Exchanger, interior heating

Core Length [mm]

245 mm

Core Width [mm]

188 mm

Core Depth [mm]

49 mm

Vehicle Equipment

for vehicles with air conditioning

Left-/right-hand drive vehicles

for left-hand drive vehicles

Outlet Diameter [mm]

16 mm

Inlet Diameter [mm]

16 mm

Water Tank Material (radiator)

Plastic

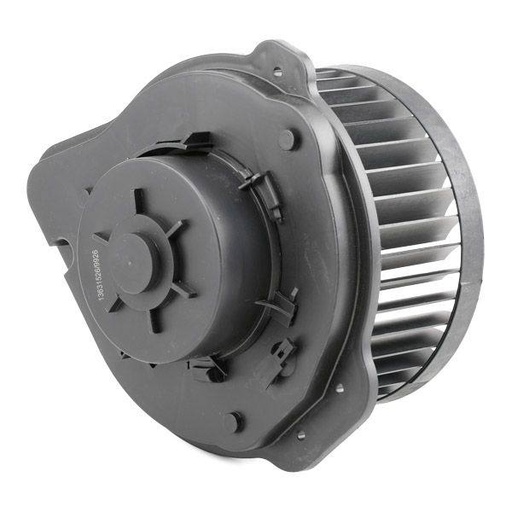

Interior Blower

Rated Voltage [V]

12 V

Number of pins

2 -pin connector

Vehicle Equipment

for vehicles with air conditioning

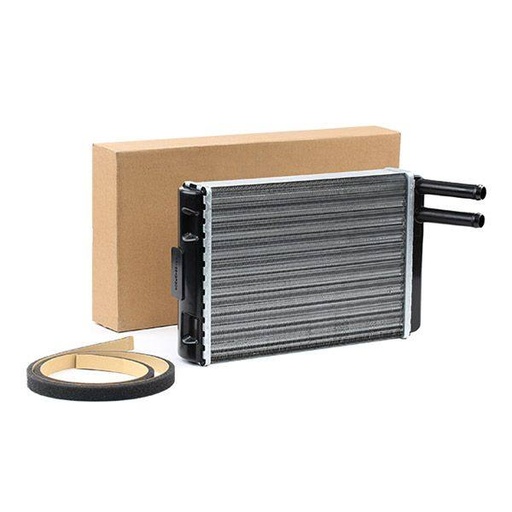

Heat Exchanger, interior heating

Core Depth [mm]

42 mm

Core Width [mm]

175 mm

Core Length [mm]

234 mm

Transmission Type

Manual-/optional automatic transmission

Vehicle Equipment

for vehicles with/without air conditioning

Material

Plastic

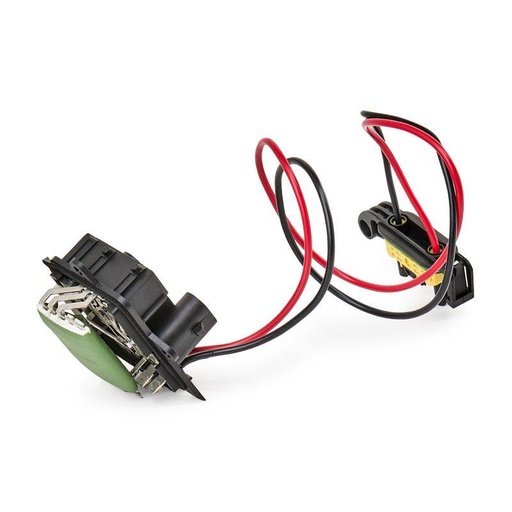

Control Unit, heating/ventilation

Vehicle Equipment

for vehicles without air conditioning

Voltage [V]

12 V

Control Unit, heating/ventilation

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Number of pins

4 -pin connector

Voltage [V]

12 V

Socket colour

black

Interior Blower

Vehicle Equipment

for vehicles with/without air conditioning

Left-/right-hand drive vehicles

for left-hand drive vehicles

Rated Voltage [V]

12 V

Supplementary Article/Supplementary Info

without integrated regulator

Heat Exchanger, interior heating

Core Depth [mm]

42 mm

Core Width [mm]

194 mm

Core Length [mm]

190 mm

Material

Aluminium

Inlet Diameter [mm]

19.8 mm

Outlet Diameter [mm]

19.8 mm

Radiator type

Mechanically jointed cooling fins

Supplementary Article/Supplementary Info 2

without pipe

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

259 mm

Width [mm]

98 mm

Height [mm]

30 mm

Quantity

2

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

259 mm

Width [mm]

98 mm

Height [mm]

30 mm

Quantity

2

Filter, cabin air

Filter type

Particulate Filter

Length [mm]

264 mm

Width [mm]

117 mm

Height [mm]

30 mm

Quantity

1

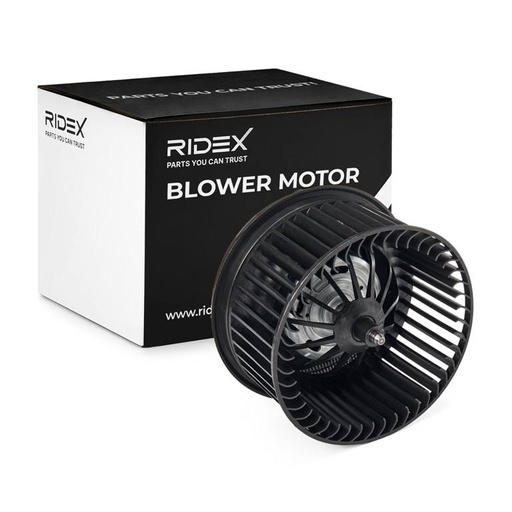

Interior Blower

Filter, cabin air

Filter type

Particulate Filter

Length [mm]

235 mm

Width [mm]

209 mm

Height [mm]

34 mm

Quantity

1

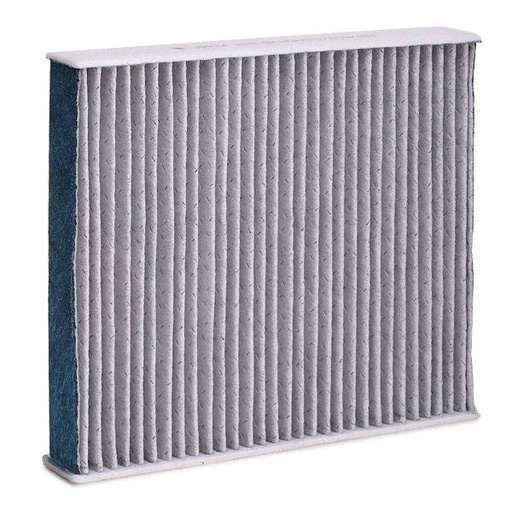

Filter, cabin air

Filter type

Activated Carbon Filter

Recommended change interval [km]

20,000 km

Length [mm]

235 mm

Width [mm]

210 mm

Height [mm]

35 mm

Quantity

1

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

234 mm

Width [mm]

211 mm

Height [mm]

35 mm

Quantity

1

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

234 mm

Width [mm]

211 mm

Height [mm]

35 mm

Quantity

1

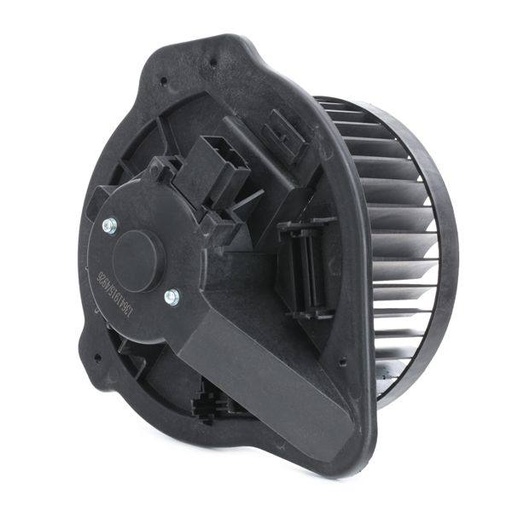

Interior Blower

Rotation Direction

Anticlockwise rotation

Voltage [V]

12 V

Diameter 1/Diameter 2 [mm]

176 mm

Number of fan blades

39

Supplementary Article/Supplementary Info

without integrated regulator

Shape

rectangular

Number of pins

2 -pin connector
