Heating/Ventilation

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

194 mm

Width [mm]

214 mm

Height [mm]

29 mm

Quantity

1

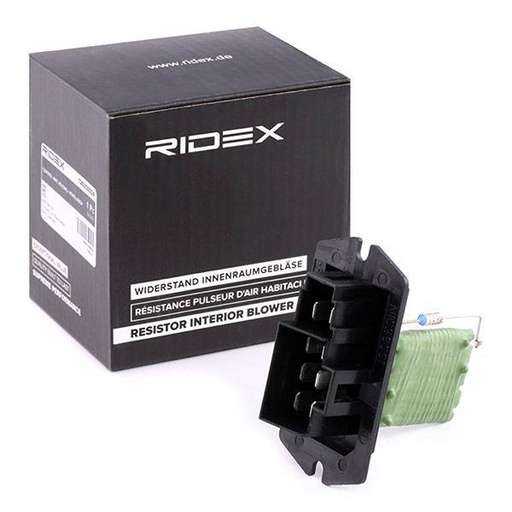

Control Unit, heating/ventilation

Required quantity

1

Weight [kg]

0.001 kg

Interior Blower

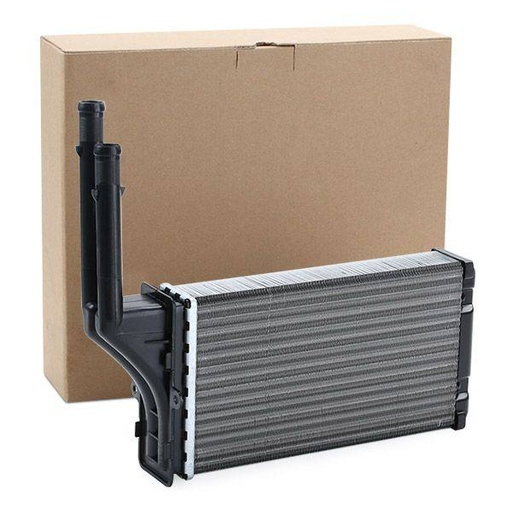

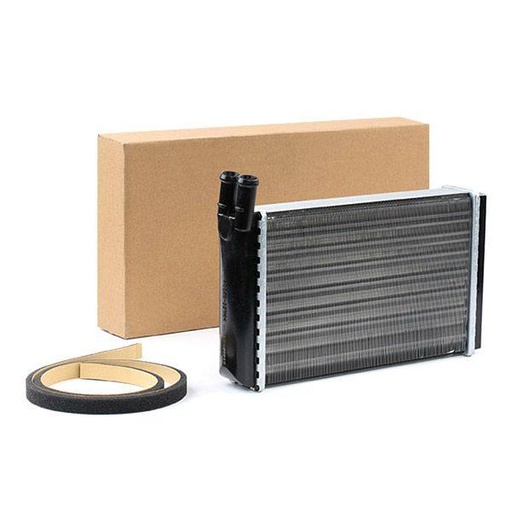

Heat Exchanger, interior heating

Core Length [mm]

234 mm

Core Width [mm]

140 mm

Core Depth [mm]

42 mm

Left-/right-hand drive vehicles

for left-hand/right-hand drive vehicles

Outlet Diameter [mm]

18 mm

Inlet Diameter [mm]

18 mm

Water Tank Material (radiator)

Plastic

Supplementary Article/Supplementary Info 2

with pipe

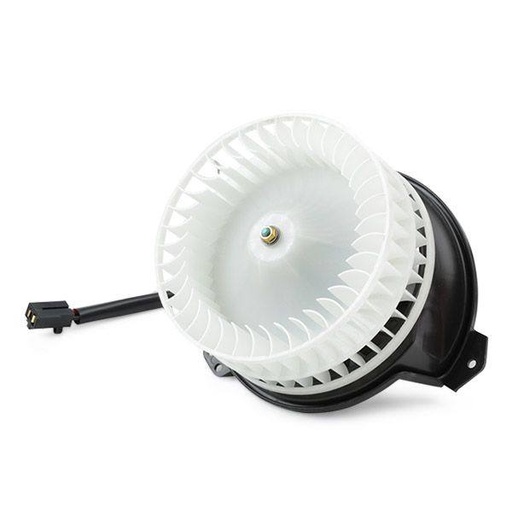

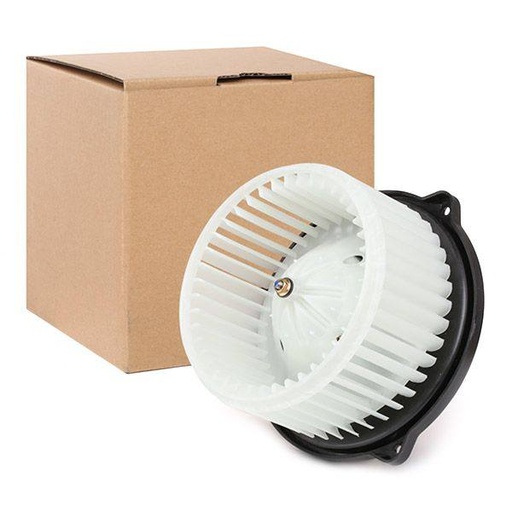

Interior Blower

Rotation Direction

Clockwise rotation

Voltage [V]

12 V

Supplementary Article/Supplementary Info

with integrated regulator

Shape

rectangular

Number of pins

4 -pin connector

Rated Power [W]

323 W

Diameter 1/Diameter 2 [mm]

146 mm

Current Strength [A]

26 A

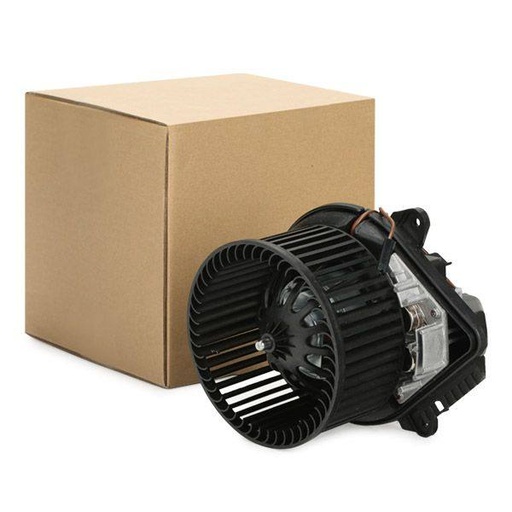

Interior Blower

Left-/right-hand drive vehicles

for left-hand drive vehicles

Rated Power [W]

216 W

Number of pins

2 -pin connector

Diameter [mm]

169 mm

Housing Type

Synthetic Material Housing

Operating voltage [V]

12 V

Regulator

without speed governor

Filter, cabin air

Filter type

Particulate Filter

Length [mm]

213 mm

Width [mm]

150 mm

Height [mm]

19 mm

Quantity

2

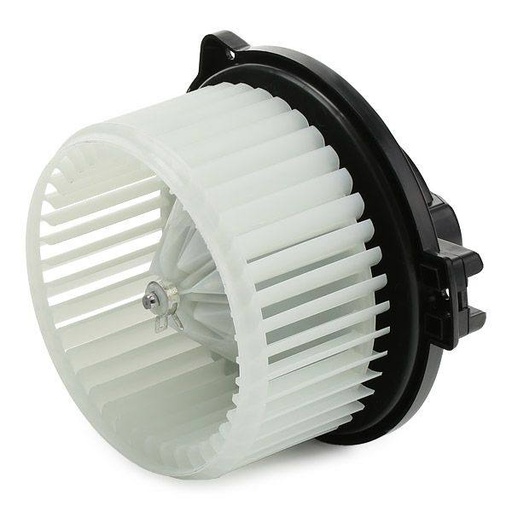

Interior Blower

Left-/right-hand drive vehicles

for left-hand drive vehicles

Voltage [V]

12 V

Supplementary Article/Supplementary Info

without integrated regulator

Diameter [mm]

149 mm

Regulator

without speed governor

Number of connectors

2

Weight [kg]

1.13 kg

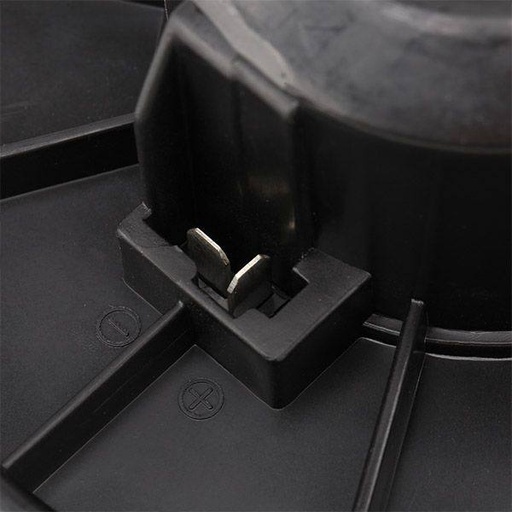

Interior Blower

Rotation Direction

Anticlockwise rotation

Voltage [V]

12 V

Shape

rectangular

Number of pins

2 -pin connector

Rated Power [W]

155 W

Diameter 1/Diameter 2 [mm]

149 mm

Current Strength [A]

13 A

Number of fan blades

41

Filter, cabin air

Filter type

Particulate Filter

Length [mm]

265 mm

Width [mm]

200 mm

Height [mm]

19 mm

Quantity

1

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

236 mm

Width [mm]

98 mm

Height [mm]

22 mm

Quantity

2

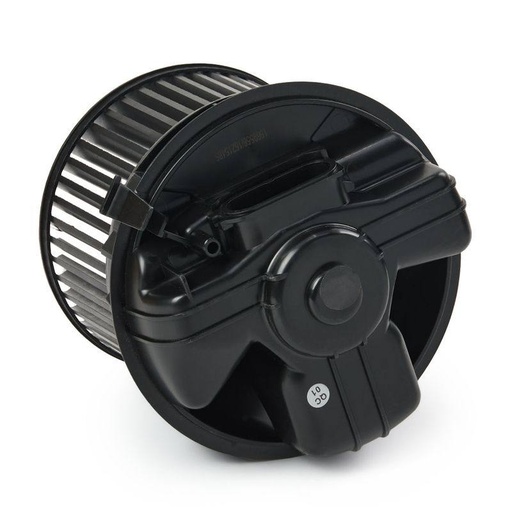

Interior Blower

Left-/right-hand drive vehicles

for left-hand drive vehicles

Diameter 1 [mm]

140 mm

Number of pins

2 -pin connector

Power [W]

190 W

Voltage [V]

12 V

Vehicle Electrical System Design

for vehicles with 12-volt electrical system

Weight [kg]

1.4 kg

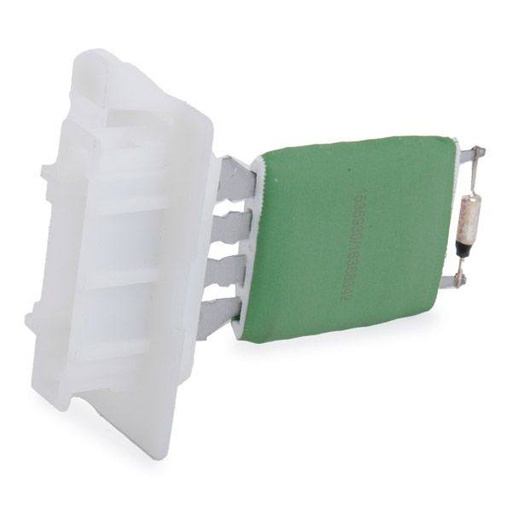

Resistor, interior blower

Vehicle Equipment

for vehicles with air conditioning

Number of pins

4 -pin connector

Weight [kg]

0.05 kg

Filter, cabin air

Filter type

Particulate Filter

Recommended change interval [km]

20,000 km

Length [mm]

215 mm

Width [mm]

163 mm

Height [mm]

30 mm

Quantity

1

Filter, cabin air

Filter type

Activated Carbon Filter

Recommended change interval [km]

20,000 km

Length [mm]

222 mm

Width [mm]

165 mm

Height [mm]

43.5 mm

Quantity

1

Filter, cabin air

Filter type

Particulate Filter

Recommended change interval [km]

20,000 km

Length [mm]

195 mm

Width [mm]

146 mm

Height [mm]

30 mm

Quantity

1

Filter, cabin air

Filter type

Activated Carbon Filter

Length [mm]

195 mm

Width [mm]

146 mm

Height [mm]

32 mm

Quantity

1

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

194 mm

Width [mm]

145 mm

Height [mm]

30 mm

Quantity

1

Filter, cabin air

Filter type

with antibacterial action

Length [mm]

194 mm

Width [mm]

145 mm

Height [mm]

30 mm

Quantity

1

Heat Exchanger, interior heating

Core Length [mm]

234 mm

Core Width [mm]

157 mm

Core Depth [mm]

42 mm

Vehicle Equipment

for vehicles without air conditioning

Material

Aluminium
