Make sure the parts fit by identifying your vehicle. Identify your vehicle to see compatibility.

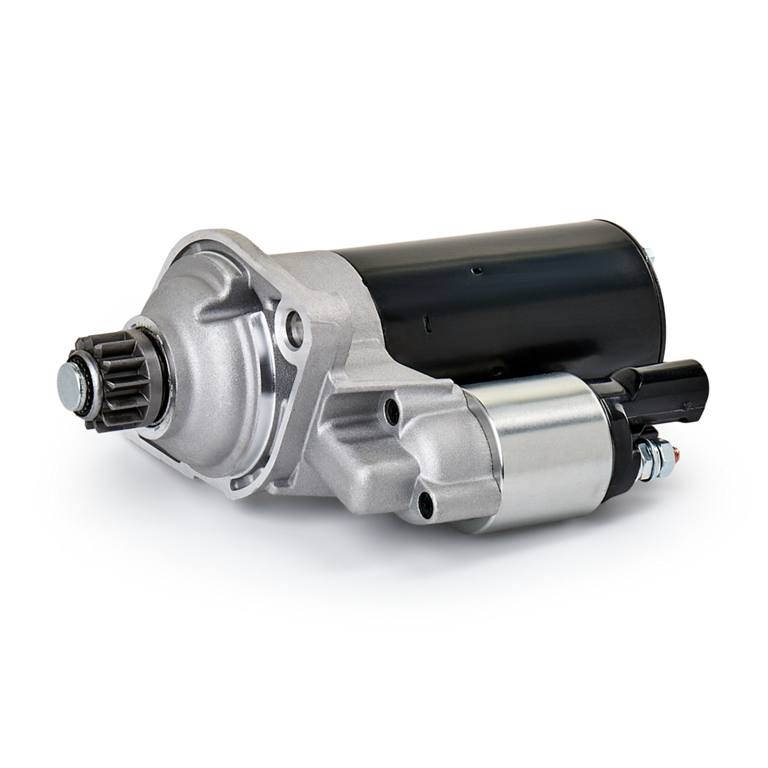

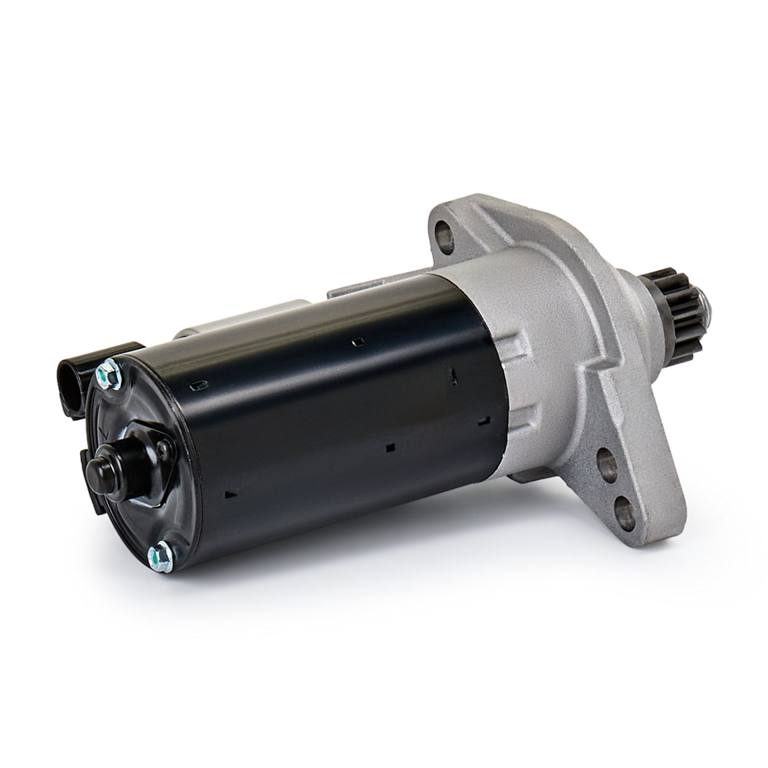

Starter

https://auto-porto.com/web/image/product.template/356940/image_1920?unique=8930131
  • Brand: RIDEX
  • Article No.: 2S0643R
  • EAN / GTIN: 4067448112548
Excl. Tax (HT) 85.90 €
VAT 19.76 €
Incl. Tax (TTC) 105.66 €

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

OEM Cross-References

Original equipment manufacturer reference numbers this part matches.

AUDI 02Z 911 021 C AUDI 02Z 911 023 S AUDI 02Z 911 023 SX AUDI 02Z 911 024 A AUDI 02Z 911 024 B AUDI 02Z 911 024 H AUDI 02Z 911 024 L VW 02Z911021CX VW 02Z911021K VW 02Z911021KX VW 02Z911023AX VW 02Z911023T VW 02Z911024AX VW 02Z911024BX VW 02Z 911 024 HX VW 02Z911024LX VW 02Z911024R VW 2X0 911 023 VW 2X911023 VW 2Z911021C VW 2Z911021K VW 2Z911021KX VW 2Z911023S VW 2Z911023SX VW 2Z911023T VW 2Z911024A VW 2Z911024AX VW 2Z911024H VW 2Z911024HX VW 2Z911024L VW 2Z911024LX VW 2Z911024R
No match

Technical Specifications

Detailed technical criteria for this part.

Voltage [V] V
12
Rated Power [kW] kW
2.2
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
13
Clamp
30
Flange Diameter [mm] mm
79
Rotation Direction
Anticlockwise rotation
Pinion Rest Position [mm] mm
52.1
Starter Type
Floating pinion
Bore Diameter [mm] mm
12.5
Bore Diameter 2 [mm] mm
12.5
Bore Ø 3 [mm] mm
12.5
Length [mm] mm
247
Width [mm] mm
135
Height [mm] mm
141
Position/Degree °
links
Mounting Angle [degrees] °
47
Mounting bore angle measurement [degree] °
47

Compatible Vehicles

This part is compatible with 20 vehicles.

  • SEAT ALHAMBRA (710, 711) (Year of Construction 05.2015 - 12.2022, 150 PS, Diesel)
  • SEAT ALTEA (5P1) (Year of Construction 10.2009 - 07.2015, 105 PS, Diesel)
  • SEAT ALTEA (5P1) (Year of Construction 11.2010 - 07.2015, 90 PS, Diesel)
  • SEAT ALTEA XL (5P5, 5P8) (Year of Construction 10.2009 - 07.2015, 105 PS, Diesel)
  • SEAT ALTEA XL (5P5, 5P8) (Year of Construction 11.2010 - 07.2015, 90 PS, Diesel)
  • SEAT ARONA (KJ7, KJP) (Year of Construction 07.2017 - present, 115 PS, Diesel)
Show all 20 compatible vehicles Show less
  • SEAT ARONA (KJ7, KJP) (Year of Construction 11.2017 - present, 95 PS, Diesel)
  • SEAT ATECA (KH7, KHP) (Year of Construction 04.2016 - present, 115 PS, Diesel)
  • VW BEETLE (5C1, 5C2) (Year of Construction 06.2014 - 09.2018, 110 PS, Diesel)
  • VW BEETLE (5C1, 5C2) (Year of Construction 10.2011 - 07.2016, 105 PS, Diesel)
  • VW BEETLE Convertible (5C7, 5C8) (Year of Construction 06.2014 - 09.2018, 110 PS, Diesel)
  • VW BEETLE Convertible (5C7, 5C8) (Year of Construction 12.2011 - 07.2016, 105 PS, Diesel)
  • VW CADDY ALLTRACK IV Box Body/MPV (SAA) (Year of Construction 05.2015 - 09.2020, 102 PS, Diesel)
  • VW CADDY ALLTRACK IV Box Body/MPV (SAA) (Year of Construction 05.2015 - 09.2020, 102 PS, Diesel)
  • VW CADDY ALLTRACK IV Box Body/MPV (SAA) (Year of Construction 05.2015 - 09.2020, 75 PS, Diesel)
  • VW CADDY ALLTRACK IV Box Body/MPV (SAA) (Year of Construction 05.2015 - 11.2017, 75 PS, Diesel)
  • VW CADDY ALLTRACK IV MPV (SAB) (Year of Construction 05.2015 - 09.2020, 102 PS, Diesel)
  • VW CADDY ALLTRACK IV MPV (SAB) (Year of Construction 05.2015 - 09.2020, 102 PS, Diesel)
  • VW CADDY ALLTRACK IV MPV (SAB) (Year of Construction 05.2015 - 09.2020, 75 PS, Diesel)
  • VW CADDY ALLTRACK IV MPV (SAB) (Year of Construction 05.2015 - 11.2017, 75 PS, Diesel)
